The Complete Wet Area Details Guide
This is not a physical product.
This is the ultimate guide for architects and designer for creating typical construction wet area details documents. Want to reduce sometime creating your working drawing package? Here is a full set of fully annotated pre prepared wet area details that are ready in DWG to be customized for your project.
What’s included in the Files?
Upon your downloading you will get two DWG files that contains the following:

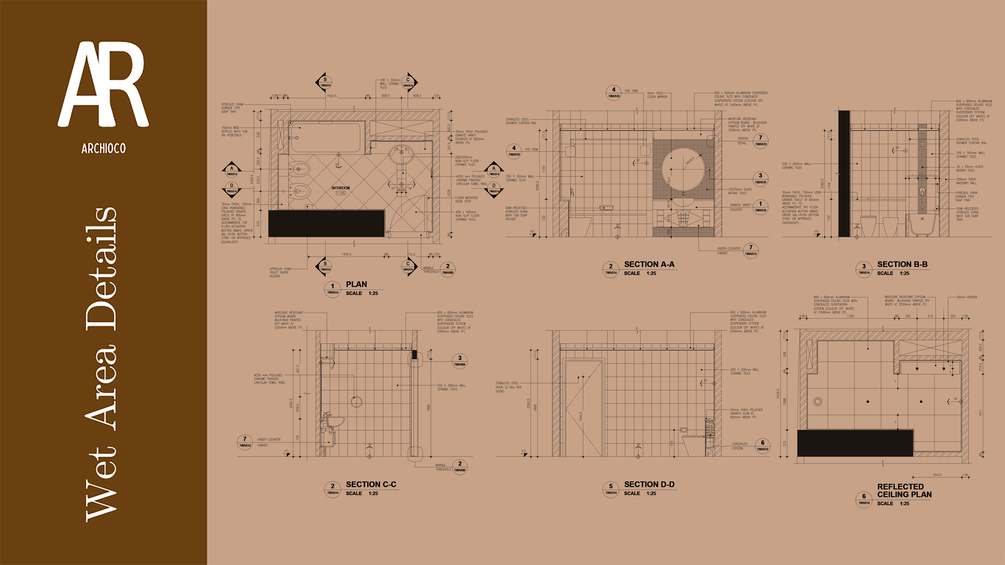

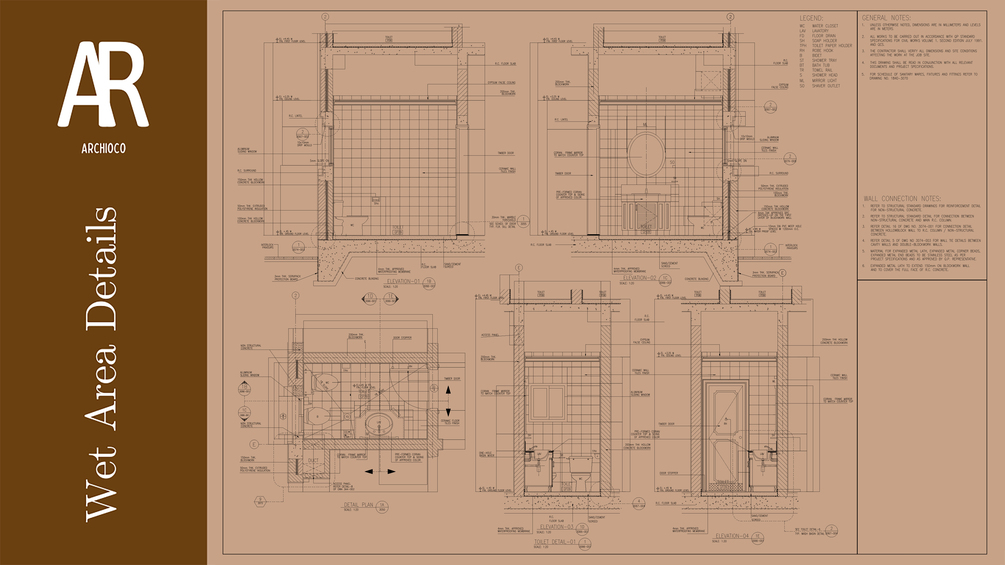

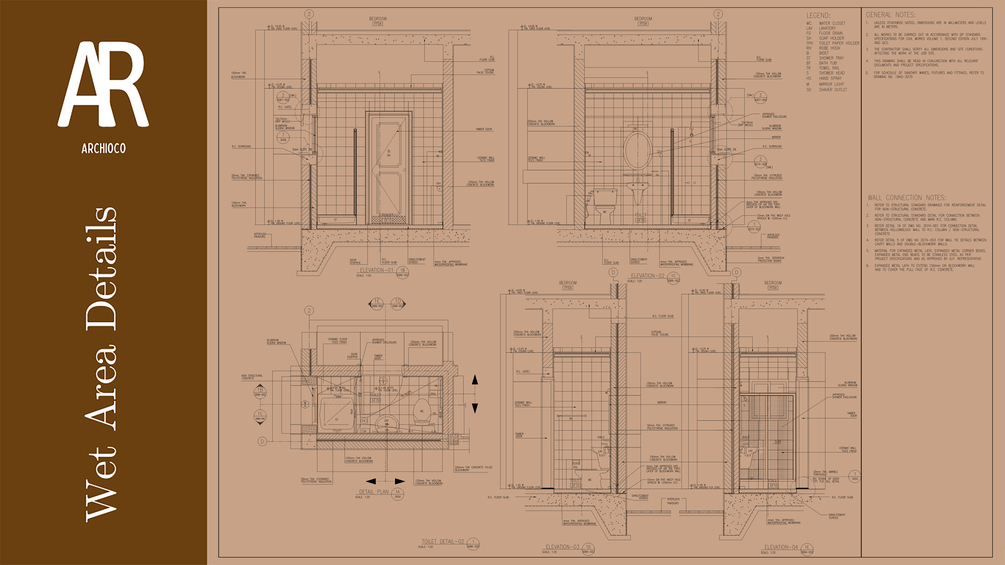

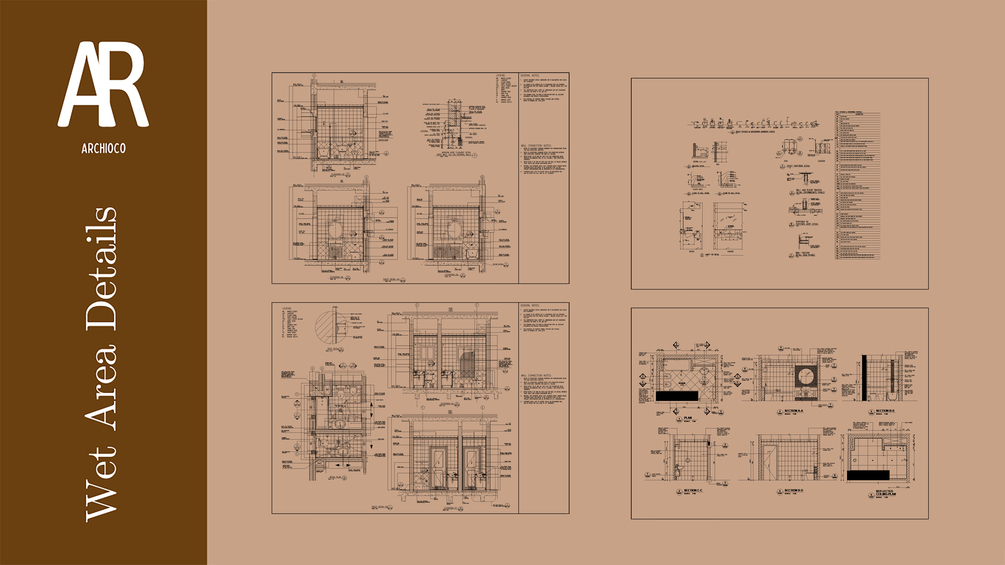

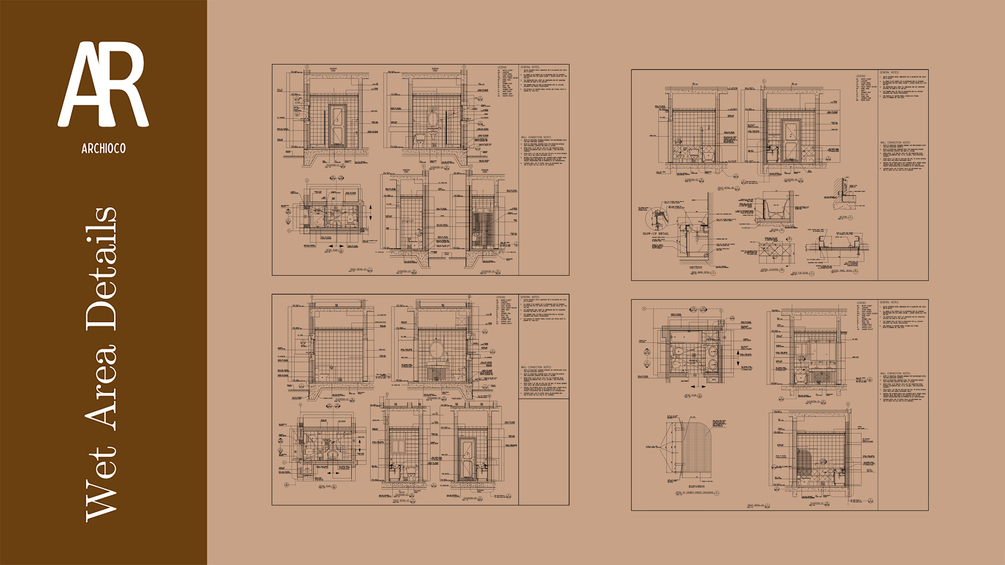

A complete wet area detail set that consists of:
- 7 different fully prepared/annotated wet area details
- A custom guide/reference for all wet area equipment placement standards
Required software:
- AutoCad 2010 or any more recent version
These detail files are completely editable and configurable, allowing you to make sure the information is what you require for your projects. These files are meant to be used by architects and designers who are familiar with AutoCAD and working drawing requirements.
A complete wet area detail set that consists of: 7 different fully prepared/annotated wet area details A custom guide/reference for all wet area equipment placement standards
